Technical Spesification |
Output |
Output Power Capacity |
1980 Watts / 2200 VA |
Max Configurable Power |
1980 Watts / 2200 VA |
Nominal Output Voltage |
230V |
Efficiency at Full Load |
95% |
Output Voltage Distortion |
Less than 5% at full load |
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz |
| |
nominal |
Waveform Type |
Sine wave |
Output Connections |
(8) IEC 320 C13 |
|
(1) IEC 320 C19 |
|
(2) IEC Jumpers |
|
Input |
Nominal Input Voltage |
230V |
Input Frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
Input Connections |
IEC-320 C14 |
| |
Schuko CEE 7 / EU1-16P |
| |
British BS1363A |
Input voltage range for main operations |
160 - 285V |
Input voltage adjustable range for mains operation |
151 - 302V |
|
|
Batteries & Runtime |
Battery Type |
Maintenance-free sealed Lead-Acid battery with |
| |
suspended electrolyte : leakproof |
Typical recharge time |
3 hour(s) |
Replacement Battery |
RBC55 |
RBC™ Quantity |
1 |
|

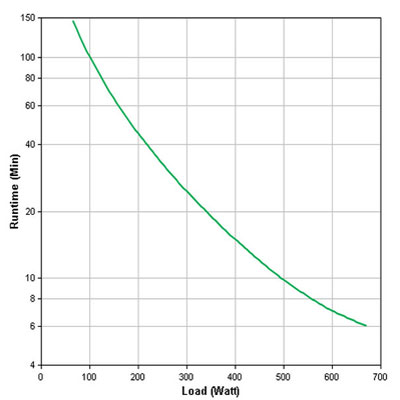

Runtime Graph |
|
|
|
Hover over the line on the graph above to view the runtime at any desired load
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output. |
Communications & Management |
Interface Port(s) |
DB-9 RS-232,SmartSlot,USB |
Available SmartSlot™ Interface Quantity |
1 |
Control panel |
LED status display with load and battery bar-graphs and On Line : |
| |
On Battery : Replace Battery : and Overload Indicators |
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable |
| |
delays |
Emergency Power Off (EPO) |
Optional |
|
Surge Protection and Filtering |
Surge energy rating |
320 Joules |
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let- |
|
through : zero clamping response time : meets UL 1449 |
|
Physical |
Maximum Height |
432.00 mm |
Maximum Width |
196.00 mm |
Maximum Depth |
544.00 mm |
Net Weight |
50.92 KG |
Shipping Weight |
65.00 KG |
Shipping Height |
700.00 mm |
Shipping Width |
380.00 mm |
Shipping Width |
760.00 mm |
Color |
Black |
Units per Pallet |
3.00 |
|
Environmental |
Operating Environment |
0 - 40 °C |
Operating Relative Humidity |
0 - 95% |
Operating Elevation |
0-3000 meters |
Storage Temperature |
-15 - 45 °C |
Storage Relative Humidity |
0 - 95% |
Storage Elevation |
0-15000 meters |
Audible noise at 1 meter from surface of unit |
45.00 dBA |
Online Thermal Dissipation |
275.00 BTU/hr |
|
Conformance |
Regulatory Approvals |
C-tick,CE,EN 50091-1,EN 50091-2,GOST,VDE |
Standard Warranty |
2 years repair or replace,optional on-site warranties |
| |
available,optional extended warranties available |
Environmental Compliance |
RoHS 7b Exemption |
|
| **The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS. |
