Smart-UPS On-Line
APC Smart-UPS RC 1000VA 230V Harsh Environment

surt10000xli-cc

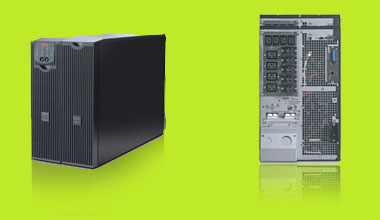

APC Smart-UPS On-Line, 8000 Watts / 10

KVA,Input 230V / Output 230V, Interface Port DB-9

RS-232, RJ-45 10/100 Base-T, Smart-Slot,

Extended runtime model, Rack Height 6 U

Includes: CD with software, Service Manual, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card

Standard Lead Time: Usually in Stock
Technical Spesification
Output
Output Power Capacity
8000 Watts / 10 VA
Max Configurable Power
8000 Watts / 10 VA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
92%
Input voltage adjustable range for mains operation
Less than 3%
Output Voltage Distortion
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Crest Factor
3 : 1
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Waveform Type
Sine wave
Output Connections
(1) Hard Wire 3-wire (H N + G)
(8) IEC 320 C13

(4) IEC Jumpers
(4) IEC 320 C19
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
Hard Wire 3 wire (1PH+N+G)
Hard Wire 5-wire (3PH + N + G)
Input voltage range for main operations
160 - 280V
Output Voltage Distortion
Less than 3%
Other Input Voltages
220,240
Input Total Harmonic Distortion
Less than 7% for full load
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with

suspended electrolyte : leakproof
Included Battery Modules
4
Typical recharge time
2.20 hour(s)
Replacement Battery
RBC44
RBC™ Quantity
2
Extended Run Options
APC Smart-UPS RT 10000VA 230V Harsh Environment

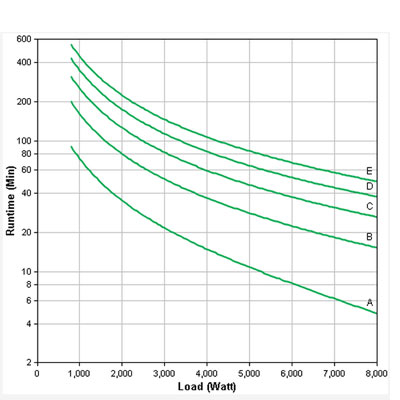

Runtime Graph
Curve
Part Number(s)

A
SURT10000XLI-CC

B
SURT1000XLI + (1)SURT192XLBP

C
SURT10000XLI-CC (2)SURT192XLBP

D
SURT10000XLI-CC + (3)SURT192XLBP

E
SURT10000XLI-CC + (4)SURT192XLBP
runtime-graph
Communications & Management
Interface Port(s)
DB-9 RS-232,RJ-45 10/100 Base-T,Smart-Slot
Pre-Installed SmartSlot™ Cards
AP9631
Control panel
LED status display with load and battery bar-graphs

and On Line : On Battery : Replace
Battery : Overload and Bypass Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm :

overload continuous tone alarm
Emergency Power Off (EPO)
yes
Surge Protection and Filtering
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-
through : zero clamping response time : meets UL 1449
Physical
Maximum Height
432.00 mm
Maximum Width
263.00 mm
Maximum Depth
736.00 mm
Net Weight
110.91 KG
Shipping Weight
129.9 KG
Shipping Height
552.00 mm
Shipping Width
597.00 mm
Shipping Width
991.00 mm
Color
Black
Units per Pallet
1.00
Environmental
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
55.00 dBA
Online Thermal Dissipation
2262.00 BTU/hr
Conformance
Regulatory Approvals
C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,
EN 60950,EN 61000-3-2,GOST,VDE
Standard Warranty
2 years repair or replace
