Technical Spesification |
Output |
Output Power Capacity |
700 Watts / 1000 VA |
Max Configurable Power |
700 Watts / 1000 VA |
Nominal Output Voltage |
IEC-320 C14 |
Input voltage range for main operations |
160 - 286V |
Efficiency at Full Load |
89% |
Input voltage adjustable range for mains operation |
Less than 3% |
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz user adjustable +/- 0.1 |
Crest Factor |
3 : 1 |
Waveform Type |
Sine wave |
Output Connections |
(1) Hard Wire 3-wire (H N + G) |
|
(8) IEC 320 C13 |
Bypass |
Built-in Bypass |
|
Input |
Battery Type |
Maintenance-free sealed Lead-Acid battery with |
| |
suspended electrolyte : leakproof |
Input Frequency |
50/60 Hz +/- 5 Hz (auto sensing) |
Input Connections |
IEC-320 C20 |
Cord Length |
2.44 meters |
Input voltage range for main operations |
160 - 280V |
Output Voltage Distortion |
Less than 3% |
Input voltage adjustable range for mains operation |
100 - 280V |
Other Input Voltages |
220,240 |
Waveform Type |
Sine wave |
|
|
Batteries & Runtime |
Battery Type |
Maintenance-free sealed Lead-Acid battery with |
| |
suspended electrolyte : leakproof |
Included Battery Modules |
1 |
Typical recharge time |
3 hour(s) |
Replacement Battery |
RBC31 |
RBC™ Quantity |
1 |
Extended Run Options |
APC Smart-UPS RT 1000VA 230V |
|

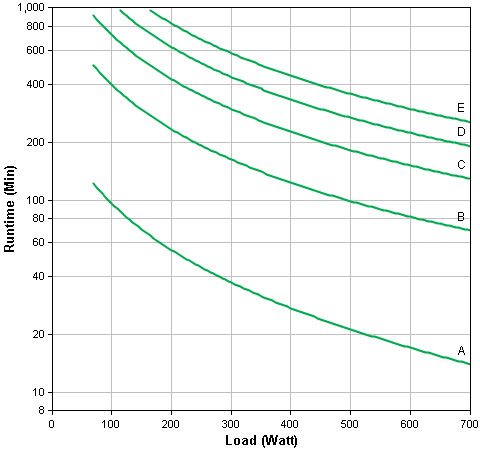

Runtime Graph |
|
|
|
Communications & Management |
Interface Port(s) |
DB-9 RS-232,SmartSlot |
Available SmartSlot™ Interface Quantity |
1 |
Control panel |
LED status display with load and battery bar-graphs and On |
| |
Line : On Battery : Replace |
|
Battery : Overload and Bypass Indicators |
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : |
| |
overload continuous tone alarm |
Emergency Power Off (EPO) |
yes |
|
Physical |
Maximum Height |
432.00 mm |
Maximum Width |
85.00 mm |
Maximum Depth |
483.00 mm |
Net Weight |
23.00 KG |
Shipping Weight |
27.80 KG |
Shipping Height |
286.00 mm |
Shipping Width |
630.00 mm |
Shipping Width |
594.00 mm |
Color |
Black |
Units per Pallet |
12.00 |
|
Environmental |
Operating Environment |
0 - 40 °C |
Operating Relative Humidity |
0 - 95% |
Operating Elevation |
0-3000 meters |
Storage Temperature |
-20 - 50 °C |
Storage Relative Humidity |
0 - 95% |
Storage Elevation |
0-15000 meters |
Audible noise at 1 meter from surface of unit |
53.00 dBA |
Online Thermal Dissipation |
324.00 BTU/hr |
|
|
| |
C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A, |
Regulatory Approvals |
EN 60950,EN 61000-3-2,GOST,VDE |
Standard Warranty |
2 years repair or replace,optional on-site warranties |
| |
available,optional extended warranties available |
Environmental Compliance |
RoHS 7b Exemption |
|
**The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS. |
