APC Smart-UPS RC 1000VA 230V Harsh Environment

sua-22001

APC Smart-UPS, 2700 Watts / 3000 VA,Input 230V

/ Output 230V, Interface Port DB-9 RS-232,

SmartSlot,

Includes: CD with software, Smart UPS signalling RS-232 cable, USB cable, User Manual

Standard Lead Time: Usually in Stock
Technical Spesification
Output
Output Power Capacity
2700 Watts / 3000 VA
Max Configurable Power
2700 Watts / 3000 VA
Nominal Output Voltage
230V
Efficiency at Full Load
95%
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz

nominal
Waveform Type
Sine wave
Output Connections
(8) IEC 320 C13
(1) IEC 320 C19
(2) IEC Jumpers
Input
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C20

Schuko CEE 7 / EU1-16P

British BS1363A
Input voltage range for main operations
160 - 285V
Input voltage adjustable range for mains operation
151 - 302V
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with

suspended electrolyte : leakproof
Typical recharge time
3 hour(s)
Replacement Battery
RBC55
RBC™ Quantity
1

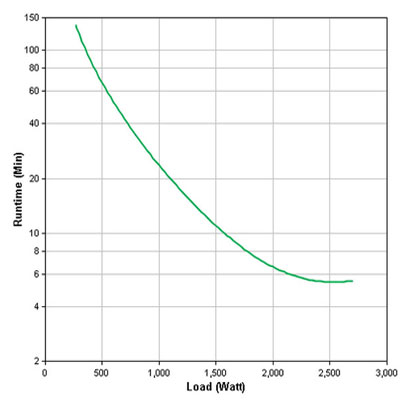

Runtime Graph
sua 30001 run time graph
Hover over the line on the graph above to view the runtime at any desired load
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
Communications & Management
Interface Port(s)
DB-9 RS-232,SmartSlot,USB
Available SmartSlot™ Interface Quantity
1
Control panel
LED status display with load and battery bar-graphs and On Line :

On Battery : Replace Battery : and Overload Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable

delays
Emergency Power Off (EPO)
Yes
Surge Protection and Filtering
Surge energy rating
365 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-
through : zero clamping response time : meets UL 1449
Physical
Maximum Height
432.00 mm
Maximum Width
196.00 mm
Maximum Depth
544.00 mm
Net Weight
55.92 KG
Shipping Weight
65.00 KG
Shipping Height
680.00 mm
Shipping Width
380.00 mm
Shipping Width
760.00 mm
Color
Black
Units per Pallet
3.00
Environmental
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
53.00 dBA
Online Thermal Dissipation
375.00 BTU/hr
Conformance
Regulatory Approvals
C-tick,CE,EN 50091-1,EN 50091-2,GOST,VDE
Standard Warranty
2 years repair or replace,optional on-site warranties

available,optional extended warranties available
Environmental Compliance
RoHS 7b Exemption,China RoHS
